Preface

The initial idea of this topic was to introduce a genuine challenge of steganography algorithm in the current CTF steganography environment where creative ideas are rampant. Contestants are expected to strengthen the robustness of their steganography algorithms through the use of Python scripts for steganography and extraction. The algorithms should still be able to extract normally under image attacks. Therefore, an OJ platform was created in the hope that contestants could showcase the pure spirit of steganography algorithms. Despite this, the platform still has its shortcomings and the problems found during the competition will be discussed later.

Platform Architecture Design

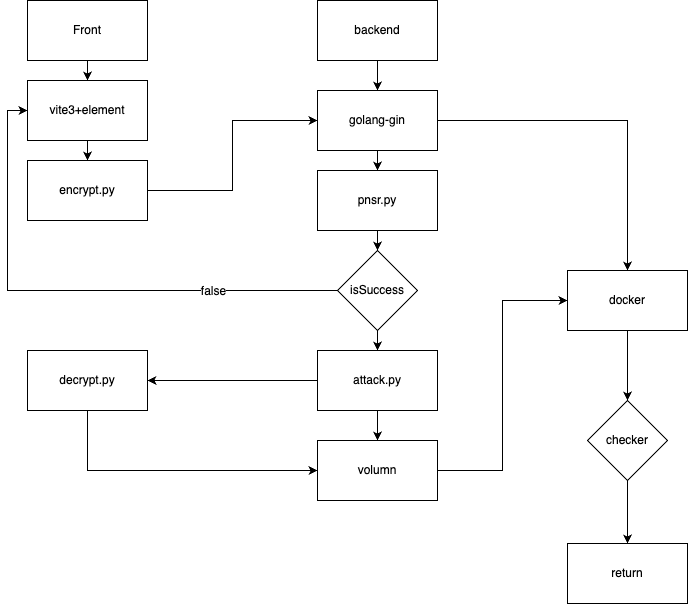

The overall architecture is divided into two parts: the front end and the back end. The front end was developed using Element+Vite, while the back end was developed using Golang+Gin in conjunction with Docker.

The overall process is as follows:

Contestants write encrypt.py, which writes the watermark characters into the eight images in the system backend, and then generates new images encrypted.

Then execute psnr.py to judge the similarity between the image before and after encryption. If the similarity is equal to 100, it means there is no encryption and an error is returned.

When the similarity is less than 85, it is judged that the image is damaged too much, and an error is returned.

Only when the similarity is between 100 and 85 is the encryption passed. Many contestants gave feedback that the reason for displaying [0/1] when running the default template code is this.

psnr.py code:

import math
import numpy as np
import cv2
import sys

def calculate_psnr(img1, img2):
    if img1.shape != img2.shape:
        raise ValueError('输入图像的大小必须相同')

    mse = np.mean((img1 - img2) ** 2)

    max_pixel = 255.0

    if mse == 0:
        return 'NOP'
    else:
        psnr = 20 * math.log10(max_pixel / math.sqrt(mse))

        if psnr > 85:
            return 'Success'
        else:
            return 'NOP'


if __name__ == '__main__':
    if len(sys.argv)!=3:
        print("Error: Invalid number of arguments")
        exit(0)
    img1 = sys.argv[1]
    img2 = sys.argv[2]
    img1 = cv2.imread(img1)
    img2 = cv2.imread(img2)
    print(calculate_psnr(img1, img2))

Of course, in order to lower the difficulty, the range of PSNR was later expanded to between 100-70.

When the encryption is passed through PSNR, the backend will automatically run attack.py, attacking the encrypted image and then saving it as a new image for decryption.

At this point, the permission to write decryption scripts is unlocked.

Finally, contestants write the decryption process. The system will monitor the output of Docker logs, and judge whether the decryption is successful based on the output content, and finally return the result. [0/8], [6/8] or decryption successful.

Contestant speed ranking.

This chapter will release the contestants’ outstanding scripts and the rankings for best memory and time consumption, along with comments.

StegLab1-PointAttack

A total of 21 contestants correctly solved the problem, which is an advanced application of the rather basic LSB algorithm. Contestants only need to proficiently master the enhancement of robustness by adding a key to LSB, as well as understanding LSB, to easily conquer this problem.

attack.py

def attack(img):
    img = Image.open(img)
    draw = ImageDraw.Draw(img)
    a,b = img.size
    x1 = random.randint(0,a//2)
    y1 = 0
    x2 = random.randint(a//2,a)
    y2 = b
    draw.line((x1,y1,x2,y2), fill=(random.randint(0,255),random.randint(0,255),random.randint(0,255)))
    for _ in range(5):
        x1 = random.randint(0,a)
        y1 = random.randint(0,a)
        x2 = random.randint(0,a)
        y2 = random.randint(0,a)
        draw.line((x1,y1,x2,y2), fill=(random.randint(0,255),random.randint(0,255),random.randint(0,255)))
    for _ in range(1000):
        x = random.randint(0,a)
        y = random.randint(0,a)
        draw.point((x,y), fill=(random.randint(0,255),random.randint(0,255),random.randint(0,255)))
    return img

It can be seen that the attack randomly scatters points and five horizontal lines on the image based on its original appearance. Contestants only need to reinforce their LSB scripts to pass.

Contestant speed ranking.

Ranking based on the total time of encryption and decryption:

username	encry time	decry time	time
x0rc3r3rs	11088	2140	13.228
SU-Team	11057	2244	13.301
LaoGong	11133	2186	13.319
Polaris	11145	2196	13.341
天枢Dubhe	11056	2288	13.344
L3H_Sec	11192	2162	13.354
Nepnep	11105	2280	13.385
Doub1e-S	11218	2184	13.402
EDISEC	11311	2213	13.524
L	11309	2223	13.532
0psu3	11266	2282	13.548
0RAYS	11336	2249	13.585
Onehalf	11427	2262	13.689
zhanyi	11665	2274	13.939
r4kapig	11727	2307	14.034
A1natas	12253	2229	14.482
LSP	12102	2402	14.504
S1uM4i	11257	3608	14.865
Vidar-Team	12114	3076	15.19
擅长可持久化线段树签到不好意思走错片场了	12933	2335	15.268
n03tAck	13910	2509	16.419

x0rc3r3rs

The algorithm time complexity of the x0rc3r3rs team’s master is the lowest, and their coding code is announced here.

Supplement: The master of this team submitted the time after the difficulty of PSNR was reduced, so the speed was faster and the code could pass. After testing, this code could not pass normally before the original PSNR.

class Solution:
    def Encrypt(self, img, key) :
        img = Image.open(img)
        width, height = img.size
        pixel_map = img.load()
        key += '$' # Add a delimiter to the key
        key_index = 0
        for y in range(height):
            for x in range(width):
                pixel = list(pixel_map[x, y])
                if key_index < len(key):
                    new_pixel = [ord(key[key_index])] * len(pixel)
                    pixel_map[x, y] = tuple(new_pixel)
                    key_index += 1
                else:
                    break
        return img

class Solution:
    def Decrypt(self,img)-> str:
        img = Image.open(img)
        width, height = img.size
        pixel_map = img.load()
        key = ''
        for y in range(height):
            for x in range(width):
                pixel = list(pixel_map[x, y])
                char_value = np.bincount(pixel).argmax()
                if char_value == 36: # '$'
                    return key
                key += chr(char_value)
        return key

天枢Dubhe

The fastest running team among those who submitted before the difficulty was reduced, the player who submitted the fastest.

class Solution:
    def Encrypt(self, img, key) :
        image = Image.open(img)
        width, height = image.size

        # Convert the encrypted message to binary
        binary_encrypted_message = ''
        for i in key:
            if isinstance(i,int):
                binary_encrypted_message += (bin(i)).replace('0b','').zfill(8)
            else:
                binary_encrypted_message += (bin(ord(i)).replace('0b','')).zfill(8)

        max_message_length = width * height * 3 // 8

        image_array = np.array(image)

        # Flatten the image array to a 1D array
        flat_image_array = image_array.ravel()

        # Encode the encrypted message in the LSBs of the image pixels
        for i in range(len(binary_encrypted_message)):
            bit = int(binary_encrypted_message[i])
            pixel_value = flat_image_array[i]
            new_pixel_value = (pixel_value & 0xFE) | bit
            flat_image_array[i] = new_pixel_value

        # Reshape the 1D array back to the original image shape
        encoded_image_array = flat_image_array.reshape(image_array.shape)

        # Save the encoded image
        encoded_image = Image.fromarray(np.uint8(encoded_image_array))

        return encoded_image

class Solution:
    def Decrypt(self,img)-> str:
        encoded_image = Image.open(img)
        encoded_image_array = np.array(encoded_image)
        binary_message = ""

        for i in range(0,8*10):
            # Extract the LSB of each pixel value
            bit = encoded_image_array.ravel()[i] & 1
            binary_message += str(bit)

        # Convert binary message to characters
        message = ""
        for i in range(0, len(binary_message), 8):
            byte = binary_message[i:i+8]
            char_code = int(byte, 2)
            message += chr(char_code)

        return message

选手内存占用排行

teamname	encrypt memory	decrypt memory	memory（mb）
擅长可持久化线段树签到不好意思走错片场了	26075136	5128192	31.203328
L	31604736	3117056	34.721792
SU-Team	34832384	1585152	36.417536
0psu3	34484224	3244032	37.728256
EDISEC	33353728	7135232	40.48896
天枢Dubhe	34918400	5656576	40.574976
Doub1e-S	34385920	6877184	41.263104
Onehalf	37953536	3321856	41.275392
Polaris	34680832	7598080	42.278912
A1natas	35782656	6696960	42.479616
LaoGong	34652160	8376320	43.02848
0RAYS	32915456	11218944	44.1344
x0rc3r3rs	34791424	9895936	44.68736
L3H_Sec	34574336	10211328	44.785664
Vidar-Team	35504128	12632064	48.136192
zhanyi	41676800	6598656	48.275456
S1uM4i	34533376	17399808	51.933184
Nepnep	34988032	17195008	52.18304
n03tAck	27631616	27631616	55.263232
LSP	36503552	24981504	61.485056
r4kapig	37474304	26669056	64.14336

L

class Solution:

    def Encrypt(self, img_path, key):
        img = Image.open(img_path)
        if img.mode != 'RGB':
            img = img.convert('RGB')

        pixels = np.array(img)
        bin_key = ''.join(format(ord(i), '08b') for i in key)
        bin_key += '11111111'  # 添加一个分隔符，表示密钥的结束

        key_index = 0
        # 只处理前n个像素，其中n为二进制密钥的长度
        for j in range(len(bin_key)):
            i, color_channel = divmod(j, 3)
            pixel_value = pixels[i // img.width, i % img.width][color_channel]
            pixel_bin = format(pixel_value, '08b')
            new_pixel_bin = pixel_bin[:-1] + bin_key[key_index]
            pixels[i // img.width, i % img.width][color_channel] = int(new_pixel_bin, 2)
            key_index += 1

        encrypted_img = Image.fromarray(pixels)
        return encrypted_img

class Solution:

    def Decrypt(self, img_path) -> str:
        img = Image.open(img_path)
        pixels = np.array(img)

        bin_key = ""
        max_length = 8 * 10 + 8  # 最长的密钥长度 + 分隔符

        for j in range(max_length):
            i, color_channel = divmod(j, 3)
            pixel_value = pixels[i // img.width, i % img.width][color_channel]
            bin_key += format(pixel_value, '08b')[-1]

            if bin_key[-8:] == '11111111':  # 如果遇到分隔符
                bin_key = bin_key[:-8]


        chars = [chr(int(bin_key[i:i+8], 2)) for i in range(0, len(bin_key), 8)]
        key = ''.join(chars)

        return key

A more expected situation, by specially handling the LSB contents to enhance robustness, has great reference value.

First Blood Team: A1natas

The master of the fastest team is quite impressive.

from PIL import Image
import numpy as np

class Solution:
    def Encrypt(self, img_path, key):
        img = Image.open(img_path)
        img_array = np.array(img)
        key_data = key.encode()  # 将 key 转换为字节数据
        key_data += b"\x14"
        # 获取 key 的二进制表示
        binary_key = ''.join(format(byte, '08b') for byte in key_data)

        key_index = 0

        for i in range(img_array.shape[0]):
            for j in range(img_array.shape[1]):
                if key_index < len(binary_key):
                    pixel = img_array[i, j]
                    pixel &= 0xFE  # 将最低有效位设置为0
                    pixel |= int(binary_key[key_index])  # 将 key 的对应位写入最低有效位
                    img_array[i, j] = pixel
                    key_index += 1

        encrypted_img = Image.fromarray(img_array)
        #encrypted_img.save(f"{img_path}.enc.png")
        return encrypted_img

    def Decrypt(self, img_path):
        img = Image.open(f"{img_path}.enc.png")
        img_array = np.array(img)
        extracted_key = ""
        l = 0
        flag = ""
        for i in range(img_array.shape[0]):
            for j in range(img_array.shape[1]):
                extracted_key += str(img_array[i, j][-1] & 1)
                # print(extracted_key)
                l += 1
                if l == 8:
                    l = 0
                    data = bytes([int(extracted_key, 2)])
                    extracted_key = ""
                    if data == b"\x14":
                        return flag
                    else:
                        flag += data.decode()
        return ''

StegLab2-ToJPGAttack

attack.py

import sys
from PIL import Image,ImageDraw
import numpy as np
import builtins
import random
import os


def attack(img):
    img = Image.open(img)
    return img


if __name__ == "__main__":
    if len(sys.argv)!=2:
        print("Error: Invalid number of arguments")
        exit(0)
    img = sys.argv[1]
    new = attack(img)
    new.save(img[:-4]+"_attacked.jpg")
    os.rename(img[:-4]+"_attacked.jpg",img[:-4]+"_attacked.png")

LaoGong

class Solution:

    def str2bits(self,key):
        dic={'!': 0, '@': 1, 'a': 2, 'b': 3, 'c': 4, 'd': 5, 'e': 6, 'f': 7, 'g': 8, 'h': 9, 'i': 10, 'j': 11, 'k': 12, 'l': 13, 'm': 14, 'n': 15, 'o': 16, 'p': 17, 'q': 18, 'r': 19, 's': 20, 't': 21, 'u': 22, 'v': 23, 'w': 24, 'x': 25, 'y': 26, 'z': 27, 'A': 28, 'B': 29, 'C': 30, 'D': 31, 'E': 32, 'F': 33, 'G': 34, 'H': 35, 'I': 36, 'J': 37, 'K': 38, 'L': 39, 'M': 40, 'N': 41, 'O': 42, 'P': 43, 'Q': 44, 'R': 45, 'S': 46, 'T': 47, 'U': 48, 'V': 49, 'W': 50, 'X': 51, 'Y': 52, 'Z': 53, '0': 54, '1': 55, '2': 56, '3': 57, '4': 58, '5': 59, '6': 60, '7': 61, '8': 62, '9': 63}
        res=[]
        for i in key:
            t=dic[i]
            for j in range(6):
                res.append(t&1)
                t>>=1
        return res

    def channel_avg(self,n,x,y):
        vec=[(-1,-1),(-1,0),(-1,1),(0,-1),(0,1),(1,-1),(1,0),(1,1)]
        r=0
        g=0
        b=0
        for i in vec:
            xx=x+i[0]
            yy=y+i[1]
            r+=n[xx][yy][0]
            g+=n[xx][yy][1]
            b+=n[xx][yy][2]

        ret=(r//8,g//8,b//8)
        dr=0
        dg=0
        db=0
        for i in vec:
            xx=x+i[0]
            yy=y+i[1]
            dr+=(n[xx][yy][0]-ret[0])**2
            dg+=(n[xx][yy][1]-ret[1])**2
            db+=(n[xx][yy][2]-ret[2])**2
        dr+=(n[x][y][0]-ret[0])**2
        dg+=(n[x][y][1]-ret[1])**2
        db+=(n[x][y][2]-ret[2])**2
        from math import sqrt
        dr=sqrt(dr/9)
        dg=sqrt(dg/9)
        db=sqrt(db/9)
        return ret,(dr,dg,db)


    def Encrypt(self, img, key) :
        key=key.ljust(10,"!")
        img = Image.open(img)
        m=np.asarray(img)
        import random
        r = random.Random(678)
        stream=self.str2bits(key)
        #print(stream)
        #print(len(stream))
        n=np.copy(m)
        self.s=stream
        for t in range(1):
            for i in stream:
                x=r.randint(0,1023)
                y=r.randint(0,1023)
                avg,dx=self.channel_avg(n,x,y)
                #print(n[x][y][0]-avg[0],n[x][y][1]-avg[1],n[x][y][2]-avg[2])
                if(i):
                    n[x][y][0]=255
                    n[x][y][1]=255
                    n[x][y][2]=255
                else:
                    n[x][y][0]=0
                    n[x][y][1]=0
                    n[x][y][2]=0

        img=Image.fromarray(n)
        return img

    def bits2str(self,stream):
        rdic='!@abcdefghijklmnopqrstuvwxyzABCDEFGHIJKLMNOPQRSTUVWXYZ0123456789'
        res=0
        #print(stream)
        for i in stream:
            res*=2
            res+=i
        return rdic[res]

class Solution:

    def str2bits(self,key):
        dic={'!': 0, '@': 1, 'a': 2, 'b': 3, 'c': 4, 'd': 5, 'e': 6, 'f': 7, 'g': 8, 'h': 9, 'i': 10, 'j': 11, 'k': 12, 'l': 13, 'm': 14, 'n': 15, 'o': 16, 'p': 17, 'q': 18, 'r': 19, 's': 20, 't': 21, 'u': 22, 'v': 23, 'w': 24, 'x': 25, 'y': 26, 'z': 27, 'A': 28, 'B': 29, 'C': 30, 'D': 31, 'E': 32, 'F': 33, 'G': 34, 'H': 35, 'I': 36, 'J': 37, 'K': 38, 'L': 39, 'M': 40, 'N': 41, 'O': 42, 'P': 43, 'Q': 44, 'R': 45, 'S': 46, 'T': 47, 'U': 48, 'V': 49, 'W': 50, 'X': 51, 'Y': 52, 'Z': 53, '0': 54, '1': 55, '2': 56, '3': 57, '4': 58, '5': 59, '6': 60, '7': 61, '8': 62, '9': 63}
        res=[]
        for i in key:
            t=dic[i]
            for j in range(6):
                res.append(t&1)
                t>>=1
        return res

    def channel_avg(self,n,x,y):
        vec=[(-1,-1),(-1,0),(-1,1),(0,-1),(0,1),(1,-1),(1,0),(1,1)]
        r=0
        g=0
        b=0
        for i in vec:
            xx=x+i[0]
            yy=y+i[1]
            r+=n[xx][yy][0]
            g+=n[xx][yy][1]
            b+=n[xx][yy][2]

        ret=(r//8,g//8,b//8)
        dr=0
        dg=0
        db=0
        for i in vec:
            xx=x+i[0]
            yy=y+i[1]
            dr+=(n[xx][yy][0]-ret[0])**2
            dg+=(n[xx][yy][1]-ret[1])**2
            db+=(n[xx][yy][2]-ret[2])**2
        dr+=(n[x][y][0]-ret[0])**2
        dg+=(n[x][y][1]-ret[1])**2
        db+=(n[x][y][2]-ret[2])**2
        from math import sqrt
        dr=sqrt(dr/9)
        dg=sqrt(dg/9)
        db=sqrt(db/9)
        return ret,(dr,dg,db)


    def Encrypt(self, img, key) :
        key=key.ljust(10,"!")
        img = Image.open(img)
        m=np.asarray(img)
        import random
        r = random.Random(678)
        stream=self.str2bits(key)
        #print(stream)
        #print(len(stream))
        n=np.copy(m)
        self.s=stream
        for t in range(1):
            for i in stream:
                x=r.randint(0,1023)
                y=r.randint(0,1023)
                avg,dx=self.channel_avg(n,x,y)
                #print(n[x][y][0]-avg[0],n[x][y][1]-avg[1],n[x][y][2]-avg[2])
                if(i):
                    n[x][y][0]=255
                    n[x][y][1]=255
                    n[x][y][2]=255
                else:
                    n[x][y][0]=0
                    n[x][y][1]=0
                    n[x][y][2]=0

        img=Image.fromarray(n)
        return img

    def bits2str(self,stream):
        rdic='!@abcdefghijklmnopqrstuvwxyzABCDEFGHIJKLMNOPQRSTUVWXYZ0123456789'
        res=0
        #print(stream)
        for i in stream:
            res*=2
            res+=i
        return rdic[res]

    def Decrypt(self,img):
        img = Image.open(img)
        n=np.asarray(img)
        import random
        r = random.Random(678)
        res=[]
        prob=[0]*60
        for i in range(60):
            x=r.randint(0,1023)
            y=r.randint(0,1023)
            avg,dx=self.channel_avg(n,x,y)
            #print("%.2f,%.2f,%.2f,%d"%(n[x][y][0]/0x80,n[x][y][1]/0x80,n[x][y][2]/0x80,self.s[i%60]))#,dx)
            res.append(int((n[x][y][0]/128+n[x][y][1]/128+n[x][y][2]/128)//3))
        #print([res[i]==self.s[i] for i in range(60)])
        key=''
        for i in range(0,60,6):
            key+=self.bits2str(res[i:i+6][::-1])
        return key

Nepnep

class Solution:
    def Encrypt(self, img, key):
        image = Image.open(img)
        pixels = image.load()
        width, heidht = image.size
        t = min(width, heidht)
        key_bin = bin(int(key.encode().hex(), 16))[2:].zfill(len(key)*8)
        print(key_bin)
        for i in range(len(key_bin)):
            pixel1 = list(pixels[i, 0])
            if key_bin[i] == '1':
                for j in range(3):
                    pixel1[j] = 255
            else:
                for j in range(3):
                    pixel1[j] = 0
            pixels[i, 0] = tuple(pixel1)
        image.convert('RGB')
        return image

class Solution:
    def Decrypt(self, img) -> str:
        image = Image.open(img)
        pixels = image.load()
        width, heidht = image.size
        # 解密消息从像素的最低有效位中提取
        decrypted_message = ""
        for i in range(10*8):
            pixel1 = list(pixels[i, 0])
            if sum(pixel1) > 255:
                decrypted_message += '1'
            else:
                decrypted_message += '0'
        msg = ''
        for i in range(0, 80, 8):
            msg += chr(int(decrypted_message[i:i+8], 2))

        return msg

Summary

Actually, I had prepared another question for everyone, but due to my operation on the night of the 19th, problems arose with the platform. I apologize to all participants for this and for the poor problem-solving experience it caused. As a result, the third question did not go online as scheduled.

However, looking at the feedback forms, steglab1 received a relatively good rating. Achieving this means the problem was not in vain.

I apologize to all participants.

The platform will meet with all participants again after fixing the problems and improving the experience. We look forward to our next meeting.

If you have any suggestions or ideas for the platform, please feel free to leave a comment in the comment section, including the widely requested koh version. All these will be considered when we meet again!
